Stitced geogrid

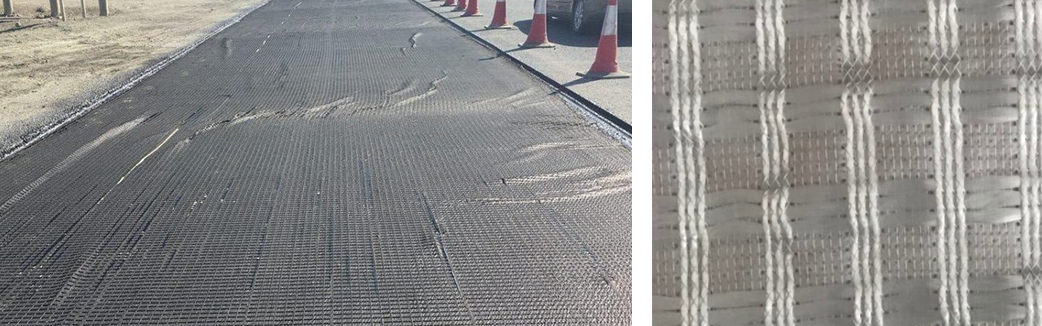

Geogrid Stitched  With Nonwoven Geotextile is manufactured from a polyester or fiberglass yarns knitted with non woven geotextile, bi-oriented grid,  without coating.

Tel: 0086-13705482778
E-mail: dageng@dageng.com
Product details:

Geogrid Stitched  With Nonwoven Geotextile is manufactured from a polyester or fiberglass yarns knitted with non woven geotextile, bi-oriented grid,  without coating.


Product Function:

According EN 1 5381 –Geotextiles and geotextile related products R + STR + B.

R=reinforcement = reinforce the bituminous layer, stopping and controlling the cracking process.

STR= stress relief = function provided by a bitumen-saturated paving fabric (non-woven or purpose built composite) which, when is properly installed between a road surface and a new asphalt overlay  allows for slight differential movements two layers and thus provides stress relief, which delays or arrests crack propagation in the asphalt overlay.

B= interlayer barrier = function provided by paving fabrics,which act in conjunction with a bitumen layer as a barrier to the ingress of water and thus prevent or delay the deterioration of the pavement.

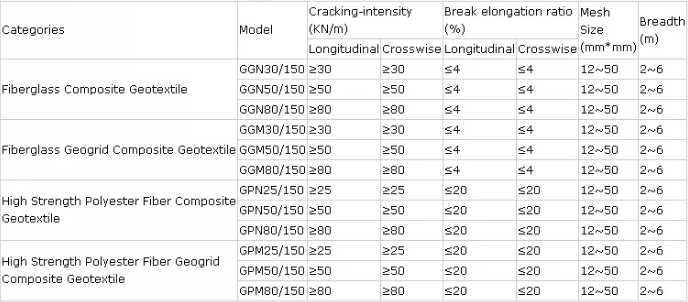

Product Data Sheet:


Product Application:

It can widely apply in the water conservation, the municipal administration, the building, the transportation, the subway, the tunnel, the environmental protection and so on.
