3D composite drainage geonet

3D composite drainage geonet tri-dimension composite geonet for drainage is made of a unique tri-dimension geonet coated geotextile on both sides. It has the property of geotextile(filtration function) and geonet (drainage and protection) and remain the certain thickness. Provide good water conductivity.

Tel: 0086-13705482778
E-mail: dageng@dageng.com
Three Dimension Geonet Introduction:

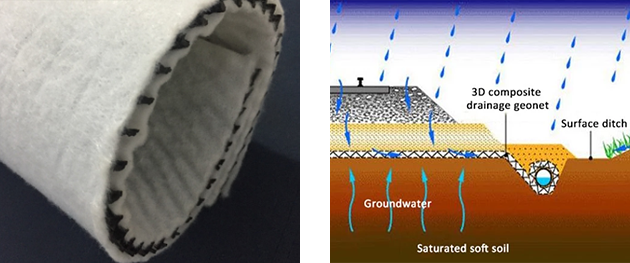

3D composite drainage geonet tri-dimension composite geonet for drainage is made of a unique tri-dimension geonet coated geotextile on both sides. It has the property of geotextile(filtration function) and geonet (drainage and protection) and remain the certain thickness. Provide good water conductivity.


Three Dimension Geonet Performance:

1,Excellent drainage function, can bear long time high press load.

2,High tensile and shear strength.

3,Reduce the rete geotextile embedding into the core of geonet, can protect long time stable water conductivity

4, tri-dimension composite geonet for drainage can bear more than 20Kpa compression load.

5,Its anti-compression capacity is much larger than common geonet for drainage.


Data sheet:

Drainage network core

Units

Specification

Unit weight

g/m2

750

1000

1300

1600

Thickness OV=20kpa

mm

5.0

6.0

7.0

7.6

Hydraulic conductivity

m/s

K×10-4

K×10-4

K×10-3

K×10-3

Elongation

%

<50

<50

<50

<50

Tensile strength(core network)

KN/m

8

10

12

14

Geotextiles

g/m2

200-200

200-200

200-200

200-200


Product Introduction:
